| Interface |
USB 3.0 |
| LED |
Status |
| Dimensions ( W x D x H ) |
84 × 156.3 × 19.2 mm (3.3 × 6.2 × 0.76 in) |
| Antenna |
2× External 5 dBi High Gain Antennas |
| WIRELESS FEATURES |
| Wireless Standards |
IEEE 802.11b/g/n 2.4 GHz, IEEE 802.11a/n/ac 5 GHz |
| Signal Rate |
5 GHz:
11ac: Up to 867 Mbps(dynamic)
11n: Up to 300 Mbps(dynamic)
11a: Up to 54 Mbps(dynamic)
2.4 GHz:
11n: Up to 400 Mbps(dynamic)
11g: Up to 54 Mbps(dynamic)
11b: Up to 11 Mbps(dynamic) |
| Reception Sensitivity |
5 GHz:
11ac VHT80: -62dBm
11ac VHT40: -65dBm
11ac VHT20: -69dBm
11n HT40: -71dBm
11n HT20: -74dBm
11a 54Mbps: -77dBm
2.4 GHz:
11n HT40: -70dBm
11n HT20: -72dBm
11g 54Mbps: -75dBm
11b 11Mbps: -87dBm |
| Transmit Power |
5 GHz: 20dBm(FCC) / 20dBm(CE) (EIRP)
2.4 GHz : 18dBm(FCC) / 18dBm(CE) (EIRP) |
| Wireless Modes |
Infrastructure mode |
| Wireless Security |
WEP, WPA/WPA2, WPA-PSK/WPA2-PSK |
| OTHERS |
| Certification |
FCC, CE, RoHS |
| Package Contents |

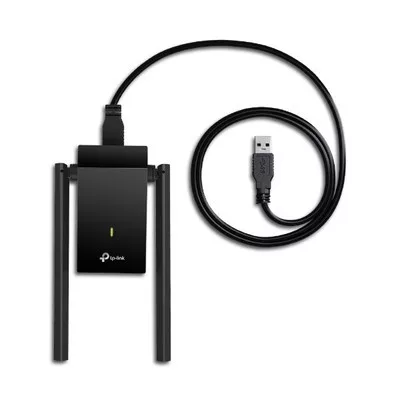

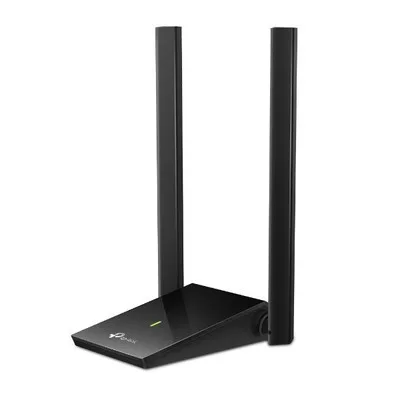

AC1300 Dual Antennas High-Gain Wireless USB Adapter Archer T4U Plus
Quick Installation Guide
Resource CD
1-meter USB 3.0 Cable |
| System Requirements |
Supported operating systems include Windows 10/8.1/8/7,
macOS |
| Environment |
Operating Temperature: 0?~40? (32? ~104?
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing |
For additional version information, please go to the support page.
