Feature
Product Description

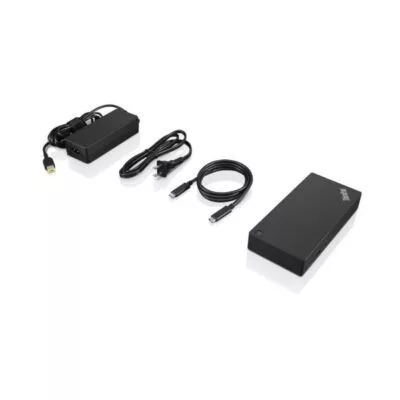

THE SMARTER WAY TO WORK Introducing the ThinkPad Universal USB-C Dock. This advanced, universally compatible one-cable docking solution lets you work smarter, not harder. It comes with a vast array of ports, next-gen plug and play functionality, and rapid charging capabilities (up to 100W for most USB-C notebooks*). Smart enough to install critical firmware updates automatically, it’s ideal for any mixed-PC environment and home-based working, and gives you the freedom and power to do more. ;; * The in-box 90W power adapter charges ThinkPad and other USB-C notebooks up to 65W. For 100W charging, an optional slim tip 135W power adapter is required (PN: 4X20E50558 (US) / 4X20E505xx). Sold separately.
Top Features
- One Dock. No Limits.
- Ideal for both office-based and remote working, it’s an IT manager’s dream—critical firmware updates are installed automatically and traditional IT tools, such as PXE boot, WOL, and MAC Address Pass Through, are also supported.
- One Cable. No Clutter.
- ThinkPad Universal USB-C Dock lets you savour blazing-fast data transfers, rapidly charge USB-C notebooks, and plug and play displays and other PC accessories. What’s more, this advanced one-cable docking solution gives you more desk-space to work and play with.
- One Remote Workforce. No Problem.
- Whether end users are in the office, hot-desking, or working from home, IT managers can remotely and securely gather key information about the dock and its attached devices—with minimal interruption to the user’s workflow.
More Information
Technical Support
Dock Driver
Tech Specs
Supported OS |
Windows 10
Windows 7 |
JAN |
4580551301475 |
EAN |
0195348192095 |
UPC |
195348192095 |
Warranty Type |
CRU |
Warranty Period |
3years |
Maximum Relative Humidity (%) |
95% ( no Condensation) |
Minimum Relative Humidity (%) |
20% |
Maximum Operating Temperature |
35° C |
Minimum Operating Temperature |
0° C |
Packed Weight |
955g |
Packed Dimensions (L x D x H) |
210*158*75mm |
Package Type |
Brown Box |
Shipment Group |
ThinkPad Universal USB-C Dock
90W AC Power adapter
Power cord
Pubs
Cable |
Product Weight |
340g |
Height |
30.75 mm |
Depth |
80mm |
Length |
171mm |
Driver Needed |
Yes |
Agency Approvals |
FCC/ICES
CE
KCC
RCM
BSMI
VCCI
CB
cULus
EAC
TUV- Mark
Serbia Kvalitet
LoA
Israel SII
Ukraine DoC
NOM |
Color |
Black |
Power Plug |
Slim-tip |
Power Button |
Yes |
Output Power |
65W with 90W power adapter connected
100W with 135W power adapter connected |
Power Delivery |
Yes |
Input Power |
90W |
Charging Port |
DC-IN |
Maximum Resolution/Refresh Rate |
2x 3840x2160 @60Hz
1x 3840x2160 @30Hz |
Max Number of External Monitors |
3 |
Physical Security Feature |
1x Security lock slot |
